Product Overview

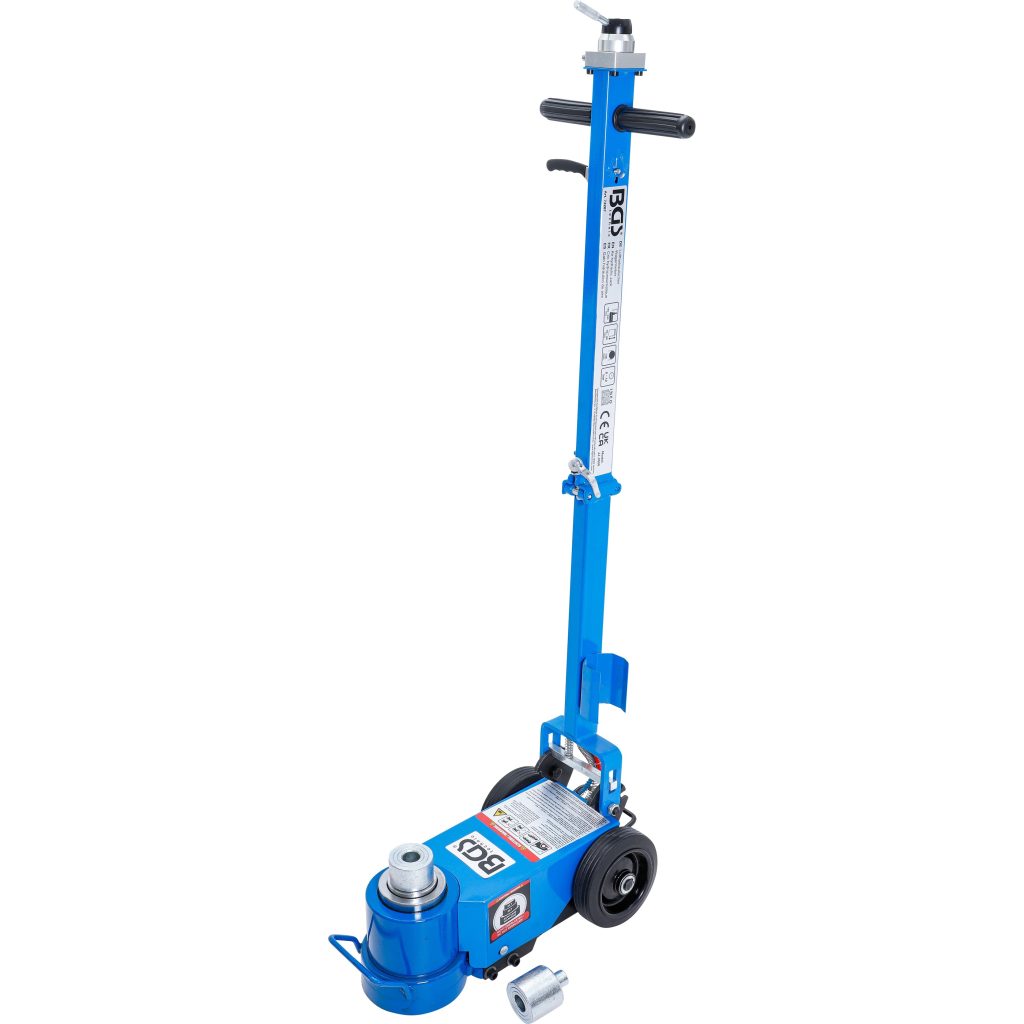

This pneumatic mobile jack is a robust, heavy-duty tool designed for lifting medium and small commercial vehicles. With a compact build and two-stage hydraulic lifting system, it’s engineered for practical operation even under low-clearance axles. The system is powered by compressed air for efficient and effortless lifting.
Key Features
-
Compact Design: Short construction allows access under virtually any axle with only 165 mm ground clearance.
-
Two-Stage Lifting: Enables higher lifting range while maintaining compact form.
-
High Capacity: Supports loads up to 25 t in the first stage and 50 t in the second.
-
Safe Operation: Equipped with overload pressure valve for built-in safety.
-
Stable Base: Large 98 mm support plate ensures secure positioning.
-
Adjustable Height: Achieves max height with included 40 mm and 60 mm adapters.
-
Easy Maneuverability: Rear and front widths ensure balance, supported by large 155 mm castor wheels.
-
Ergonomic Use: Long lever (1160 mm) and durable handle (50 x 30.5 mm) for comfortable operation.
Technical Specifications
| Specification | Value |
|---|---|
| Max. Load Capacity | 25 / 50 t |
| Working Pressure | 8–12 bar |
| Air Requirement | 35–40 l/min |
| Min. Height | 165 mm |
| Max. Height | 330 mm |
| Lifting Height | 165 mm |
| Length | 520 mm |
| Rear Width | 280 mm |
| Front Width | 160 mm |
| Cylinder Diameter | 136 mm |
| Plate Diameter | 98 mm |
| Adapter Heights | 40 mm, 60 mm |
| Lever Length | 1160 mm |
| Handle Diameter | 50 x 30.5 mm |
| Castor Wheel Diameter | 155 mm |
| Gross Weight | 45,000 g |
